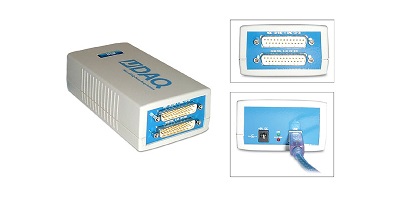

usb daq data transmission module
USB Interface
16 / 32 Single Ended or 8/16 Differential Analog Input Channels
250kHz / 400kHz (model dependent) Total Sampling speed across
16 channels
4 x 14-bit Analog Outputs (USB-30 Model)
Onboard 16K FIFO
4x Analog Outputs (14-bit)
24x DIO lines (3x 8-bit ports)
I/O Connector: 2x DB25 Male (1 for A/D & 1 for DIO)
LED indication for power & USB connection
Ideal for Portable/Laptop Use
Housing: Plastic ABS with rubber feet
Operating Temp: 0 to 70°C
O/S Support for Windows 98/ME/XP/2000 & Linux
Includes EDRE SDK, EDRE-Labview, EDRE-Testpoint and
WaveView for Windows
Power: Supplied with a 1A 9VDC external PSU
Power Consumption: 500mA typ @ 9VDC
Dimensions: 45(H) x 80(W) x 148(L) mm
